Eco Friendly Heavy Steel Structure Durable For Industrial Applications

Eco-Friendly Durable Heavy Steel Structure Building For Industrial Applications

Product Description

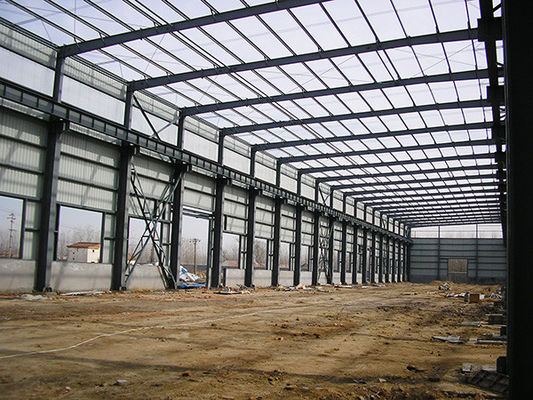

Heavy steel structure building is usually composed by a series of steel structure members, including H section steel column, H section steel beam, C/Z section purlin, bracing and cladding, etc., which are load-bearing structure of the building.
People today have a great demand of heavy steel building because of its rapid production, easy transport and fast construction. With the development of the times, heavy steel structure building is becoming a popular and the most cost-efficient building type, which is the top option in industrial and commercial construction area.
We will provide the accurate budget, construction plan and detail drawing according to your different specific application and request. Steel structure section and panel will be fabricated in different dimension at factory and directly fixed by bolts and self-tapping screws at site.

Product Parameter

The main components of heavy steel building are as follows:

1. Primary Framing

Main steel frame is mainly composed of steel beams, steel columns, steel trusses and other components made of section steel and steel plate, and adopts rust removal and anti-rust process such as shot blasting, painting and galvanizing. Welding, bolts or rivets are usually used to connect each member or component.

2. Secondary Framing

Secondary members connect the main frame and help in resisting part of the longitudinal loads that are applied on the building such as wind and earthquake loads.
Steel purlin is available in 1.8 mm. 2.0 mm, 2.2 mm, 2.5 mm and 3.0 mm thickness. The purlin come with a galvanized sheet.
Column bracing is a connecting member set between two adjacent columns to ensure the overall stability of the building structure, improve lateral stiffness and transfer longitudinal horizontal force.

3. Roof and wall cladding system

Steel sheet, its base sheet is usually be galvanized sheet or aluminium zinc sheet with organic coating. It has the advantages of good corrosion resistance, bright color, beautiful appearance, convenient processing and forming, and has the original strength of the steel plate and low cost.
Sandwich panel is composite insulation panel made by two sides steel sheet and heat insulated core material through binder (or foam). The core can be EPS (polystyrene ), fiberglass wool, rock glass wool and PU (polyurethane).

Production Features

Advantages of heavy steel structure building constructionLarge

1. Clear Span
Steel building span can be 45m with H section steel columns and beams in reasonable price; If need lager span, it will suggest to use trusses as roof.
2. Quality Control
The building members are manufactured completely in the factory under strict control, the quality is assured.
3. Low Maintenance Cost
Steel buildings members are supplied with high quality paint systems for cladding and steel to suit ambient conditions at site, which result in long durability and low maintenance cost.
4. Architectural Versatility
Steel building can be designed with canopy, curved eave, concrete wall panel, curtain wall, block wall, concrete roof, etc.
5. Less Construction Time
The steel structure members are fabricated at the factory, they can be easily assembled by bolts and nuts at site, which will reduce the erection time.

Design and Quote

If you have drawings, welcome to share drawings with us, quoation will be done based your drawings. Our excellent design teamwill design the steel structure building for you.

In order to ensure the accurate quotation, pls provide below info before quotation, thanks!
1. Location: (where will be built? ) which country? which city?
2. Size: Length*width* eave height _____m*_____m*_____m
3. Wind load (max. Wind speed) _____kn/m2, _____km/h, _____m/s
4. Snow load (max. Snow height) _____kn/m2, _____mm, temperature range?
5. Anti-earthquake _____level
6. Brick wall needed or not If yes, 1.2m high or 1.5m high? or other?
7. Thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested;
If not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former.
8. Door quantity & size _____units, _____(width)m*_____(height)m
9. Window quantity & size _____units, _____(width)m*_____(height)m
10. Crane needed or not If yes, _____units, max. Lifting weight____tons; Max. Lifting height _____m

Product Processing

The components of the heavy steel structure building are transported to the site after the production of the workshop for assembly, which is mainly divided into the following steps in the workshop processing:

1. Cutting
Steel components, such as beams, columns, and plates, are precisely cut to the required dimensions using advanced cutting techniques, such as Automatic laser cutting machine, to ensure accurate fitment during assembly.
2. Assemble
The cut steel pieces are fitted together according to engineering drawings and specifications.
3. Welding
Welders employ various welding techniques, to join the steel components securely. Welding creates strong and resilient connections, enhancing load-bearing capacity.
4. Rust removal
Before surface treatment, any rust or scale on the steel surfaces must be removed. Techniques like sandblasting, shot blasting, or chemical cleaning are used to eliminate corrosion, creating a clean and smooth surface.
5. Surface treatment
Spray painting or hot-dip galvanizing according to customer's requirements, so that the surface is not corroded.

Packaging

Packaging Details:

The main steel frame will be securely packed using steel pallets, providing enhanced protection during transportation. This packaging method allows for efficient loading and unloading as the entire frame can be handled as a single unit. Additionally, it helps optimize container space, reducing the number of shipping containers required and resulting in cost savings for ocean freight.
Other components such as steel purlins and steel sheets will be carefully packaged in parcels. These parcels will be certainly loaded into containers, ensuring safe and convenient handling throughout the shipping process.

Our Advantages

Why choose XGZ as your supplier of prefabricated steel structure construction buildings?

1. Professional engineer team and construction team
The engineer team and construction team are skilled with many years of experience.
For installation team most of them have been in-depth training in the field of construction, construction methods, construction of pre engineered steel overseas, have more experience in construction of large steel works.
2. Ensure appropriate options
We build the professional constructions, on time with the set time frame; To achieve this, before deploying everything, the company's engineers will prepare and plan to avoid the slightest errors.
3. Safety first
With the motto of managing "Labor Safety first", the quality of the project must always ensure the original commitment. All technical standards for safety and quality are supervised by supervisors at the highest level.
4. International standard
With the management system based on ISO 9001: 2015 standard, we have produced a lot of high quality steel structure products used for many domestic and foreign large scale projects.
5. Factory capacity
Modern technology and machinery, applying the latest design and manufacturing technologies. We are constantly researching new optimal solutions to perfect the product.
6. Ensure the best price
Xinguangzheng provides a comprehensive solution, we are proactive in all, from consultancy, design, production, construction, erection to completion of the project. In addition, we will offer prices to clients based on actual needs and situation.
7. Export steel structure
Xinguangzheng is one of the leading steel structure exporters in China. So far, we have successfully exported steel structures to 80 countries in Southeast Asia, USA, Australia, Europe, Africa, etc.

FAQ

1. Are you a manufacturer?

Yes, we have our own factory, we are able to provide a very competitive price for you.

2. Do you offer design service?

You tell us the building type, size, quantity, material of roof, wall, floor and other parts, we will check and fast offer you quotation.

3. Can you send engineers or whole team to install my project?

Yes, we will send you the detailed installation drawing and video for free, we can provide the services of installation, supervision, and training by extra. We can send our professional technical team to supervise installation on site overseas.

4. How to buy my idea products?

You can provide us your drawing, and we can produce as your drawings.
Or we can design as your requirements if you don’t have a clear plan. We will provide our plans according to the local climatic condition.

5. How long does it take to get my building?

Lead time is vary, but typically 2 weeks of drawings and 30-55 days for delivery(depending on complexity).
